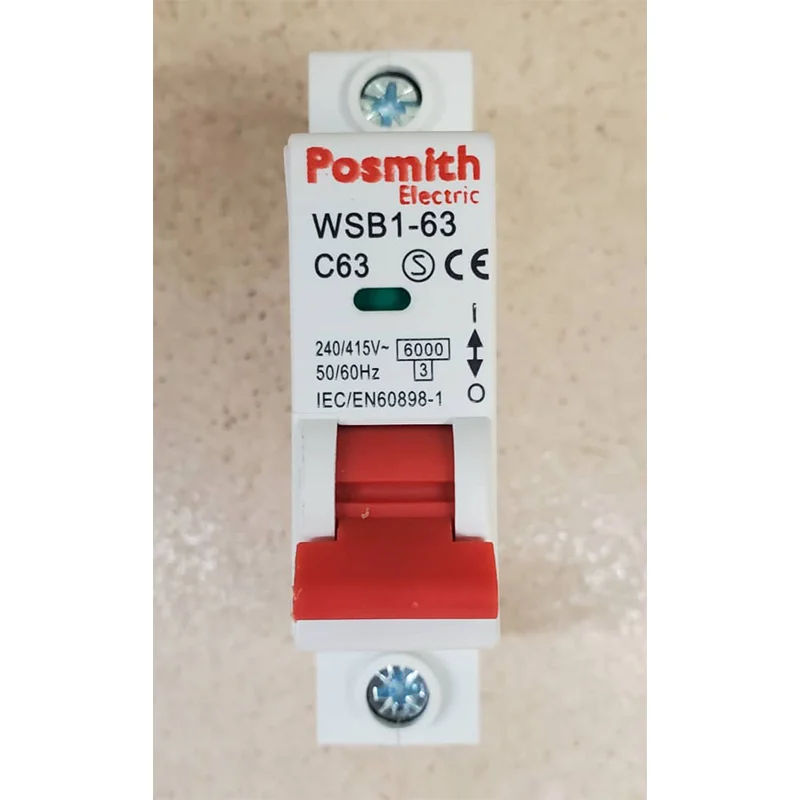

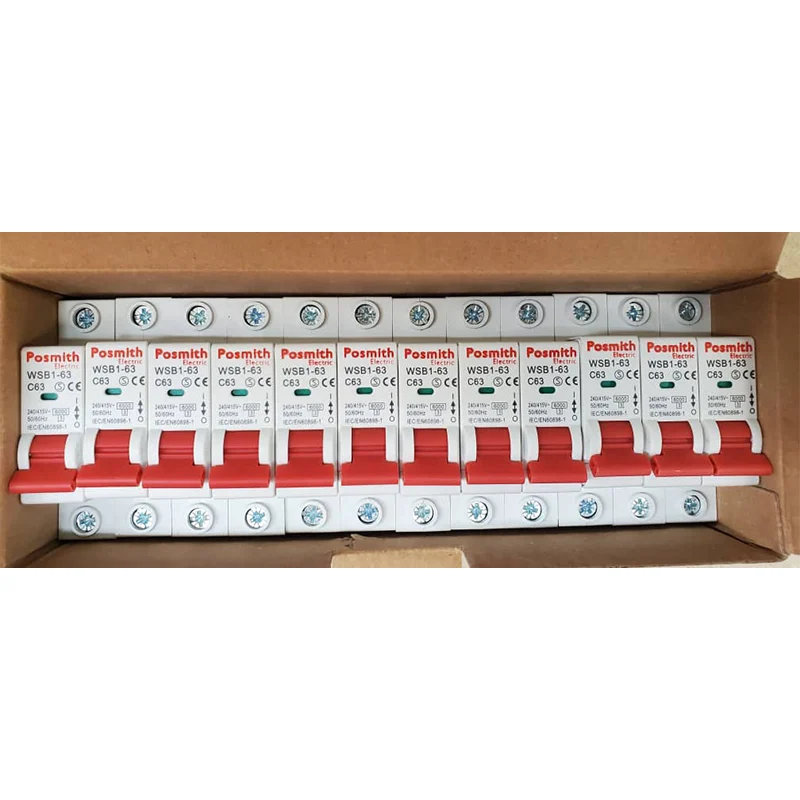

POSMITH Electric WSB1-63 C63 MCBs
POSMITH Electric WSB1-63 Series High Breaking Miniature Circuit Breaker
WSB1-63 Series MCBs Are mainly applied at lines of AC 50Hz or 60Hz, rated operation voltage AC230V/400V, rated current upto 63A, for overload and short circuit protection to the lines, also for changeover of infrequent operation to the lines. The MCBs are used at places of commercial office building, residential building andsimiliar buildings, etc.
The product meets standards of GB10963. 1 and IEC60898-1, at international advanced level.
- Delivering: We offer Nationwide Delivery - Monday - Saturday
- Call: +2348063316412
- Customer Care: We offer technical support and after sales service
- Address: Shop F464 F-Line Industrial Section, Alaba International Market, Ojo, Lagos State, Nigeria.
Description
POSMITH Electric WSB1-63 Series High Breaking Miniature Circuit Breaker
POSMITH Electric WSB1-63 C63 MCBs
WSB1-63 Series MCBs Are mainly applied at lines of AC 50Hz or 60Hz, rated operation voltage AC230V/400V, rated current upto 63A, for overload and short circuit protection to the lines, also for changeover of infrequent operation to the lines. The MCBs are used at places of commercial office building, residential building andsimiliar buildings, etc.
The product meets standards of GB10963. 1 and IEC60898-1, at international advanced level.
| Product category | CIRCUIT BREAKER | ||
| Product type | MINIATURE CIRCUIT BREAKER(10KA MCB) | ||
| Product model | TMM1-63 | ||
| Business information | MOQ: 120pcs Payment: T/T, L/C Delivery time: 15-60 days Loading Port: Ningbo or Shanghai, China Certification: ISO9001:2015 Logo:pad printing, laser printing (customized design are acceptable) |
||
| Unique selling proposition | IEC 60898 10KA MCB can 100% pass 10KA Over 20,000 cycles mechanical and electrical endurance operation |
||
| Technical data | Standard | IEC60898-1, GB10963.1 | |
| Electrical features | Rated curret (In) | 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A,25A, 32A, 40A, 50A, 63A | |
| Trip curve | B, C, D | ||
| Pole | 1P ,2P, 3P, 4P | ||
| Rate voltage (Ue) | 1P: 240V/415V ; 2/3/4P: 415V | ||
| Insulation voltage(Ui) | 500V | ||
| Rated frequency | 50/60Hz | ||
| Energy limiting class | 3 | ||
| Rated breaking capacity (Icn) | 10KA | ||
| Rated operating short circuit breaking capacity (Ics) | 7.5KA | ||
| Rated impulse withstand voltage (Uimp) | 4KV | ||
| Electrical life | 4,000 | ||
| Pollution degree | 3 | ||
| Mechanical features | Mechanical life | 20,000 | |
| Protection degree | IP20 | ||
| Ambient temperature (with daily averages35°C) | -5°C +40 | ||
| Storage temperature | -25°C +70 | ||
| Installation | Terminal connection type | Cable, busbar | |
| Connection capacity (input) | 25mm2 | ||
| Connection capacity (output) | 25mm2 | ||
| Tightening torque (input) | 2.5Nm | ||
| Tightening torque (output) | 2.5Nm | ||
| 35mm DIN rail | |||
