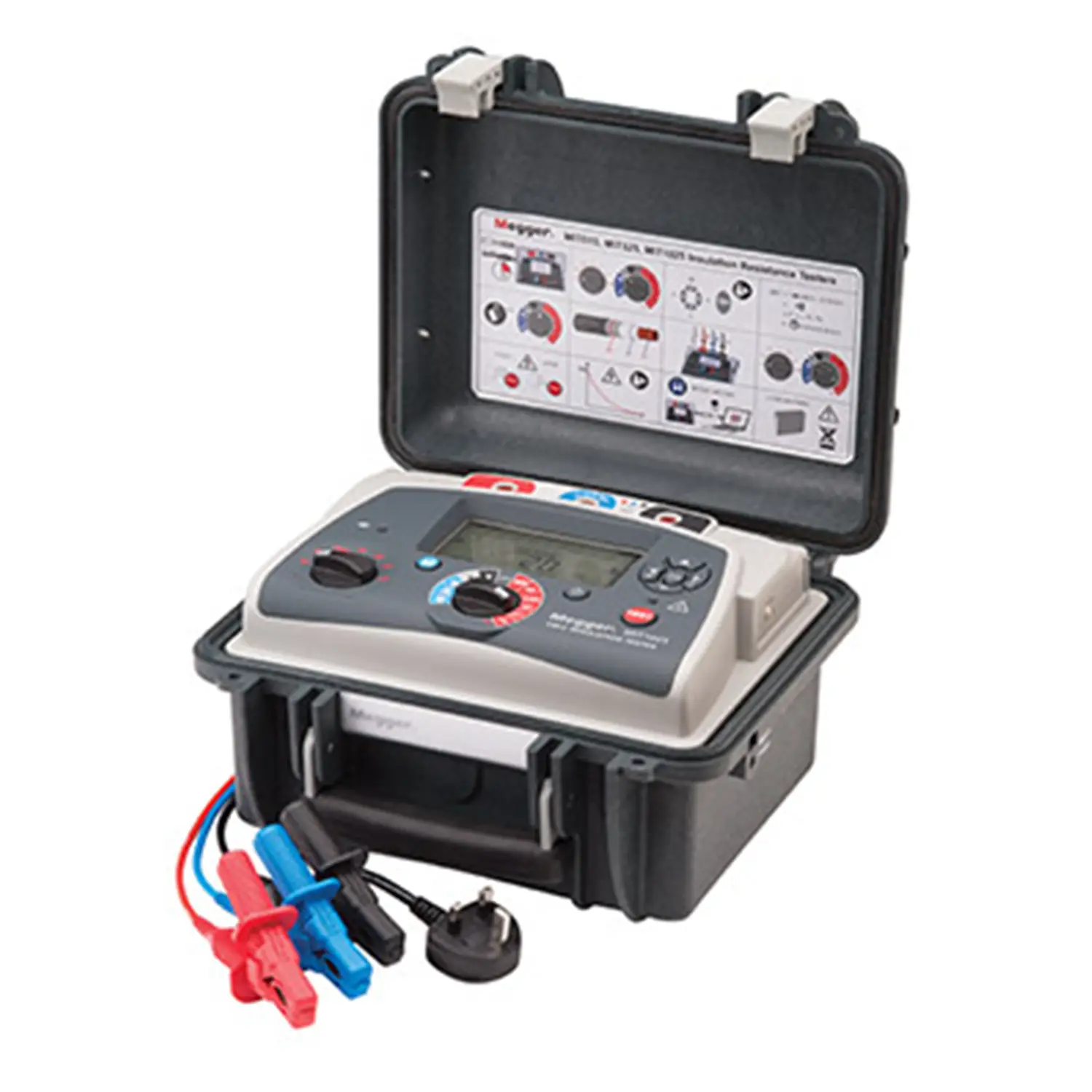

Megger MIT525 5kV Insulation Resistance Tester

Megger MIT525 5kV Insulation Resistance Tester

In Stock

Megger MIT525 5kV Insulation Resistance Tester

  • Insulation resistance up to 10 TO @ 5 kV
  • Measures capacitance of test object (with test voltages over 5000 V)
  • IR, Timed IR, DAR, PI, DD, SV and Ramp diagnostic tests
  • High current – 3 mA short circuit currentnHigh noise immunity – 3 mA (5 kV and 10 kV)
  • Li-ion battery – up to 6 hrs continuous testing @ 5 kV with a 100M load, battery meets IEC 2133
  • Large LCD display with backlightnDedicated voltmeter function (30 V to 660 V)
  • Advanced memory, on screen recall and real time clock for date / time stamped results
  • Download of on-board results via USB interface -Recorded temperature (measured by independent instruments) can be saved with test result
  • PowerDB Lite asset management software -Safety rated at CAT IV 600 V (maintained to 3000 m altitude)
Order on WhatsApp
  • Delivering: We offer Nationwide Delivery - Monday - Saturday
  • Call: +2348063316412
  • Customer Care: We offer technical support and after sales service
  • Address: Shop F464 F-Line Industrial Section, Alaba International Market, Ojo, Lagos State, Nigeria.
Category:

Description

Megger MIT525 5kV Insulation Resistance Tester

Megger MIT525 5kV Insulation Resistance Tester

Part: MEGMIT525

Manufacturer: Megger

MIT525: 5 kV IRT with all test modes including a ramp test plus advanced memory functions with recall to screen, RTC for time/date stamp of results and USB cable interface to PC / PowerDB

Megger’s new range of d.c. insulation testers, MIT515, MIT525, MIT1025 and MIT1525 are targeted at original equipment manufacturers and industrial companies. The top of the range MIT1525 performs insulation resistance tests up to 15 kV with a 30 TO maximum resistance and an accuracy of ±5 % from 1 MO up to 3 TO. The MIT515 offers IR, DAR and PI functions but has no memory functionality. MIT525, MIT1025 and MIT1525 have a full suite of test modes as well as on-board memory and the ability to stream data / download data to a PC / laptop. Instrument productivity is a focus of the new MIT range, which offers rapid charge ba

tteries and operation from an a.c. source if the batteries are flat. Rapid charge batteries enable > 60 minutes testing after a 30 minute charge.

Megger MIT525 5kV Insulation Resistance Tester

Features:

  • Insulation resistance up to 10 TO @ 5 kV
  • Measures capacitance of test object (with test voltages over 5000 V)
  • IR, Timed IR, DAR, PI, DD, SV and Ramp diagnostic tests
  • High current – 3 mA short circuit currentnHigh noise immunity – 3 mA (5 kV and 10 kV)
  • Li-ion battery – up to 6 hrs continuous testing @ 5 kV with a 100M load, battery meets IEC 2133
  • Large LCD display with backlightnDedicated voltmeter function (30 V to 660 V)
  • Advanced memory, on screen recall and real time clock for date / time stamped results
  • Download of on-board results via USB interface -Recorded temperature (measured by independent instruments) can be saved with test result
  • PowerDB Lite asset management software -Safety rated at CAT IV 600 V (maintained to 3000 m altitude)

Application

  • cables and industrial/OEM testing
  • transformers
  • motors/generators
  • circuit breakers and busihings
  • substation equipment
  • quality control
